Daytime Running Light Module
DAYTIME RUNNING LAMP MODULE
.automatic DRL module for direct connection on battery
The newest generation of DRL module is switched on plus and minus
battery´s pole and so the daylight activates itself
automatically with engine start. Thanks this new patent the mounting is
easier and it may be used in all cars due that it
detects battery current that turn on DRL automatically, no needs to
search for ignition power supply.
Simply connect to position light in order to control the shut-off
function. Only 3 cable connections and so is DRL ready to start and
approved.

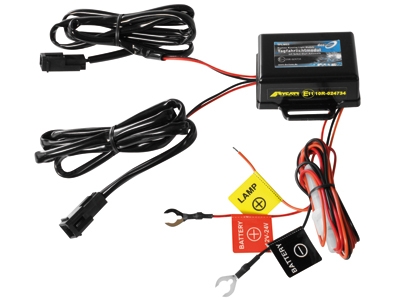

.TO CONNECT TO BATTERY:
1 x plus pole (red wire) to be connected with SC cable lug, no need to
loose the check nut
1 x minus pole (black wire) to be connected with SC cable lug, no need
to loose the check nut
1 x position light connection (orange wire) to sold in or crimp on the
positive pole from position light
.dimension: L 70mm x W 50mm x H 30mm
maximum load: 2A/16V
no-load voltage: 9-14V
